DVK-WLM101 -

WLM101, WLAN, 802.11B, EVAL KIT

LAIRD TECHNOLOGIES DVK-WLM101

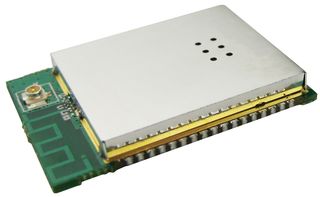

Изображение дано только в качестве иллюстрации. Изучите описание продукта.

Производитель:
LAIRD TECHNOLOGIES LAIRD TECHNOLOGIES
Номер по каталогу производителя:
DVK-WLM101
Код заказа:
2067035

Информация об изделиях

:
-
:
-
:
Разработка Радиосетей
:
-
:
РЧ Модуль
:
Laird Technologies
Поиск аналогичных товаров Для поиска похожих продуктов выбирайте и изменяйте приведенные выше параметры.

Обзор продукта

DVK-WLM101 is a development kit for WLM101 low power 802.11b WLAN module. The module provides multiple serial UART or SPI interfaces, enabling connection to any embedded design utilizing a 8/16/32bit microcontroller via simple commands. The WLM101 is an ideal solution for organizations with limited or no WiFi or RF expertise, as it not only dramatically reduces RF design time but also removes the burden of testing and certification, allowing customers to focus on their core application, product or expertise. The module supports data rates up to 11Mbps, is compliant with 802.11b and meets regulatory and WiFi Alliance requirements. Multiple software configurations are available for stack running on the module. It offers a quick, easy and cost effective way for device and appliances manufacturers to add WiFi capabilities to their products.
  • Operates with standard 802.11 b/g/n access points at speed upto 11Mbps(802.11b)
  • Infrastructure or Adhoc mode
  • Multiple UART and SPI interfaces
  • Supports SPI master and slave
  • Up to 11Mbps in SPI master mode and 3Mbps in SPI slave mode
  • Up to 921.6kbps on UART
  • Full WiFi stack including WPS and optional networking stack and services
  • 802.11i security
  • WEP, WPA, WPA2-PSK, enterprise
  • U. FL connector for external antenna

Области применения

Медицинское, Промышленное, Автоматизация Зданий, Потребительская Электроника, Беспроводное
